Containerized PSA Nitrogen Generator

Products / Nitrogen Generator / Containerized PSA Nitrogen Generator

Containerized PSA Nitrogen Generator
Nitrogen Generator

Containerized PSA Nitrogen Generator

HBFD-C Series

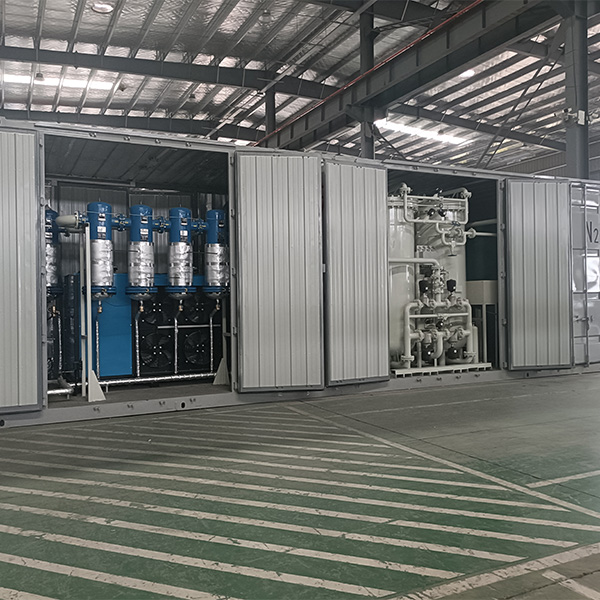

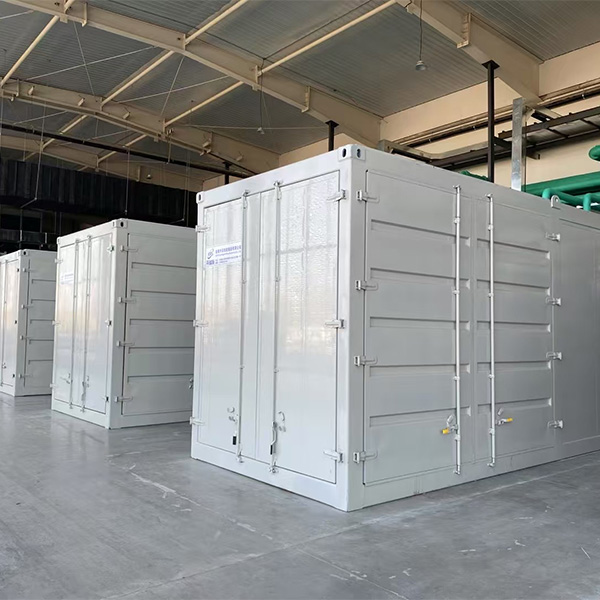

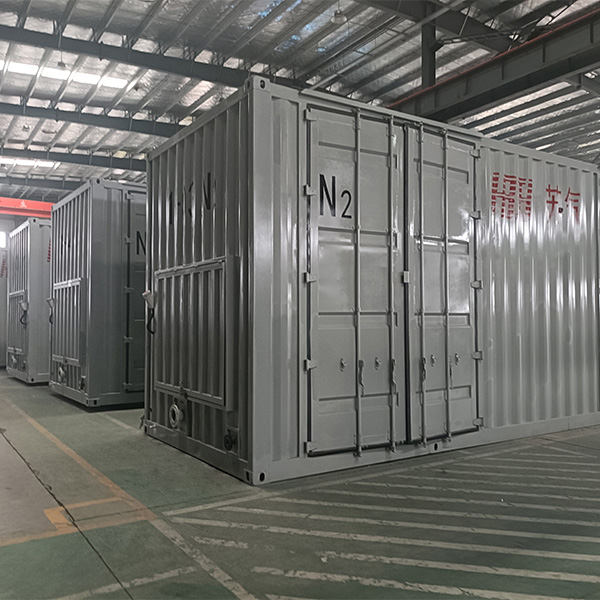

Containerized PSA nitrogen generator is a fully integrated, skid-mounted nitrogen production system housed in a standard ISO container, using pressure swing adsorption technology with customized low-pressure-drop molecular sieve to produce high-purity nitrogen (95%-99.999%) on-site. It features a multi-tower structure (four-tower, six-tower, or eight-tower configurations) for stable pressure output, equipped with Hongbo's self-developed airflow distribution system and 14 pneumatic valves for optimal air-nitrogen ratio and energy efficiency.

Inquiry Now +86-13817675951

Containerized PSA Nitrogen Generator Overview

Containerized PSA Nitrogen Generator System Diagram

Containerized PSA Nitrogen Generator System Diagram

Products Introduction

  • Advanced Molecular Sieve: Using the low-pressure-drop molecular sieve customized by Hongbo, compared with conventional low-pressure-drop molecular sieves, it can further improve the separation efficiency of oxygen and nitrogen in the air.
  • Optimized Airflow Distribution System: The nitrogen generation main unit, equipped with Hongbo’s self-made and self-developed airflow distribution system and combined with 14 pneumatic valves, has six more valves than industry peers, reducing the air-nitrogen ratio and operating costs.
  • Multi-Tower Structure Design: With Hongbo’s latest multi-tower structure design, it can form four-tower, six-tower, or eight-tower configurations, which offer more stable pressure and better performance compared to the dual-tower structure.
  • Variable Frequency Technology: Both the air compressor and nitrogen generator are designed with variable frequency technology for greater energy efficiency.

NitroFlex Containerized Solutions

As a top innovator in gas generation technology, NitroFlex designs and builds containerized nitrogen systems to give industries unmatched autonomy, efficiency, and safety. We don’t just supply equipment — we deliver complete, turnkey nitrogen production plants packed into tough, ISO-standard containers.

Technical Parameters

SOFD-1C-4-20C Feet Container with Air Compressor

Model Purity Oxygen Content Capacity Air:Nitrogen Air Consumption Power Consumption
SQFD-1C-4 ≥99.999% ≤10ppm 190 Nm³/h 4.6:1 16.0 Nm³/min 0.53 kWh/Nm³
≥99.995% ≤50ppm 270 Nm³/h 3.6:1 17.5 Nm³/min 0.43 kWh/Nm³
≥99.99% ≤100ppm 300 Nm³/h 3.4:1 18 Nm³/min 0.40 kWh/Nm³

Dimensions: SQFD-1C-4: 3050mm × 2250mm × 2450mm, Weight: 8T

Dimensions with Tanks: SQFD-1C-4: 4000mm × 2400mm × 2450mm, Weight: 9T

The Real Benefits You’ll See

Total Operational Independence

Ditch delivery schedules and supplier reliance. Generate nitrogen 24/7, exactly to your needed purity (95%–99.999%) and flow rate. You’re in charge of your most critical utility.

Major Cost Savings

Eliminate the recurring rental fees, delivery surcharges, and evaporation losses that increase your costs. Change a variable operational expense (OpEx) into a predictable, lower-cost model. Return on investment is very often achieved within a few months.

Quick, Plug-and-Play Installation

Our machines are complete, checked, and pre-commissioned. The only thing you have to do once the units are there is to connect power, compressed air, and your network. The time required to be able to produce nitrogen can be measured in days and not in months anymore.

Built-In Safety & Sustainability

Eliminate the risks of handling and transporting high-pressure cylinders. Shrink your site’s carbon footprint by cutting hundreds of truck deliveries from your logistics.

Proven Uses Across Industries

Our containerized units have been designed to withstand extreme conditions of nature of all kinds:

Energy & Resources

  • Oil & Gas: Equipment that can be used without any danger for purging, pipeline testing, and pressure maintenance during well servicing, completions, and workovers.
  • Mining: Fire prevention in coal mines by inerting, and gold recovery processes (CIP/CIL) at isolated locations.

Industrial Manufacturing & Turnarounds

  • Chemicals & Petrochemicals: An on-site solution for plant shutdowns, maintenance purging, and tank blanketing — ensuring safety and continuity of operations.
  • Metals & Fabrication: A perfect source for laser cutting, annealing, and sintering operations requiring continuous, high-purity nitrogen.

Food, Beverage & Pharmaceuticals

  • Mobile Packaging: The most suitable solution for MAP lines, especially during seasonal peaks and new facility setups. Food-grade systems guarantee the utmost purity levels.
  • Pharma & Biotech: Functions as a validated backup or primary source for blanketing and sparging.

Infrastructure & Marine

  • Power Generation: Supports major role during outages by inerting boilers and turbines, keeping assets safe from corrosion.
  • Shipbuilding & Repair: Supplies large amounts of nitrogen for purging and testing along pipelines, tanks, and confined spaces.
