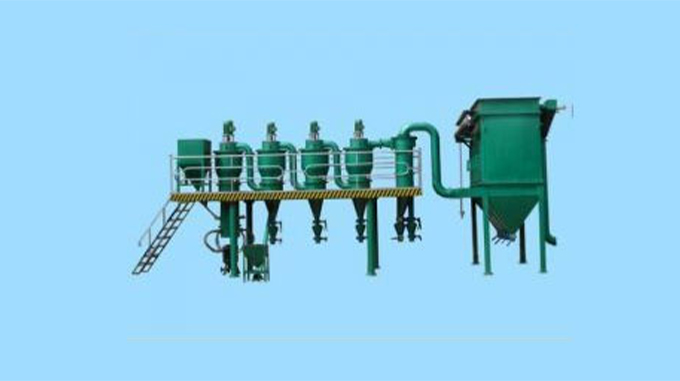

Nitrogen in Pulverized Coal Industry — Comprehensive Safety Solutions
Pulverized coal, with particle sizes typically below 75 microns, presents significant explosion and fire hazards throughout the preparation, storage, and utilization process. Nitrogen inerting is the most effective and widely adopted safety measure, recognized by international coal processing standards including NFPA 69, EN 1127, and GB/T 15605.
The Explosion Risk
Coal dust explosions require five elements: fuel (coal dust), oxidant (oxygen), ignition source, dispersion, and confinement. Nitrogen inerting eliminates the oxidant element by reducing oxygen concentration below the limiting oxygen concentration (LOC). For bituminous coal, the LOC is approximately 12% oxygen at ambient temperature, but safety standards typically require operating below 8% oxygen to provide adequate safety margin.
1. Coal Mill Inerting Systems
Coal mills (bowl mills, ball mills, and vertical roller mills) are the most critical area for inerting protection. During mill operation, hot air dries and transports the coal, creating an ideal environment for combustion. Nitrogen is injected at multiple points:
- Mill inlet: Nitrogen injection with the primary air flow to reduce oxygen concentration before grinding begins
- Mill outlet: Nitrogen injection into the classifier section to inert the pulverized coal stream
- Mill body: Multiple injection nozzles distributed around the mill shell to ensure complete inerting
- Startup and shutdown: Full nitrogen purge before mill startup and during shutdown to prevent explosive atmospheres
Technical specifications: A typical 50 t/h coal mill inerting system uses 500-1500 Nm³/h of nitrogen at 97-99% purity, with fast-acting valves (opening time < 1 second) triggered by oxygen analyzers monitoring at multiple points.
2. Pulverized Coal Storage and Handling
Pulverized coal silos, bins, and hoppers require continuous nitrogen blanketing to maintain safe oxygen levels. The nitrogen supply must be designed for worst-case scenarios including:
- Normal operation: Continuous low-flow nitrogen injection to maintain oxygen below 8%
- Filling: Increased nitrogen flow during silo filling to displace the air entering with the coal stream
- Emptying: Maintained blanket during silo discharge to prevent air ingress through the outlet
- Emergency: High-flow nitrogen for rapid inerting in case of detected temperature rise or fire
3. Pneumatic Conveying Systems
Nitrogen-pneumatic conveying systems transport pulverized coal from mills to storage or from storage to burners using nitrogen as the carrier gas. This eliminates the explosion risk inherent in air-based conveying systems. Design considerations include:
- Conveying velocity: 15-30 m/s (sufficient to prevent settling without excessive erosion)
- Solid-to-gas ratio: 5-20 kg coal per kg nitrogen
- Pipeline pressure: 0.5-3 bar g depending on conveying distance and elevation
- Nitrogen recovery: Closed-loop systems with nitrogen recycling can reduce operating costs by 60%
4. Coal Drying Systems
High-moisture coal (above 15%) requires drying before pulverization. Nitrogen-based drying systems use indirect heating with nitrogen sweep gas to remove moisture without creating explosive atmospheres. This is particularly important for lignite and sub-bituminous coal drying.
5. Blast Furnace Coal Injection (BF-PCI)
Nitrogen-assisted pulverized coal injection into blast furnaces is a well-established technology that reduces coke consumption and CO₂ emissions. The nitrogen serves multiple functions:
- Conveying medium for coal transport from mill to injection lances
- Cooling medium for injection lances exposed to high furnace temperatures
- Flow control for uniform coal distribution among multiple injection points
- Safety barrier preventing furnace gas backflow into the coal injection system
System Monitoring and Control
Modern coal inerting systems include comprehensive monitoring:
- Continuous oxygen analyzers (zirconia or paramagnetic type) at critical points
- Temperature monitoring with thermocouple arrays in silos and mills
- Carbon monoxide detection for early fire warning
- Automatic nitrogen flow control based on oxygen readings
- PLC-based safety logic with redundant sensors and valves
Hongbo Gas Solutions
Hongbo Gas provides complete nitrogen inerting systems for the pulverized coal industry, including nitrogen generation, compression, storage, distribution, and control systems. Our PSA generators are designed for 24/7 continuous operation in industrial environments, with flow rates from 50 to 5000 Nm³/h and purities from 97% to 99.9%.
